1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination

  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
  • 1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination
Place of Origin China
Nama merek HAFE
Sertifikasi CE
Model Number HMI1000W
Minimum Order Quantity 1UNIT
Harga Dapat dinegosiasikan
Packaging Details transport case or carton
Delivery Time 7-10days
Payment Terms T/T, L/C, Western Union
Supply Ability 3000units/year

Hubungi saya untuk sampel gratis dan kupon.

Ada apa:0086 18588475571

Wechat wechat: 0086 18588475571

Skype: sales10@aixton.com

Jika Anda memiliki kekhawatiran, kami menyediakan bantuan online 24 jam.

x
Detail produk
Lighting source 1000W HMI Balloon Material Polysilk
Lighting Sourse Single1000W Maximum power 1100W
Fan 2 x 36 W - 12V DC, 2.9A or 110v/230V Power supply volt 20V/208V/240V/277V AC - 60Hz or 230V AC - 50Hz
Restrike time 10 ~ 15 minutes Envelopes option(s) column / beacon
Tinggalkan pesan
Deskripsi Produk

1000w Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination





1. General Description

The Columus™ MH400 is a high-performance inflatable lighting tower featuring a robust air-inflated mast structure and equipped with a 400W Metal Halide (HID) light source. It delivers rapid deployment, 360° glare-free diffused illumination, and high lumen output—engineered specifically for nighttime construction, disaster response, public safety operations, and large-scale outdoor events.

Designed and manufactured by HAFE INTERNATIONAL LIMITED / BTCOOPS Industrial Safety Lighting Division, the MH400 meets IP44 protection rating and operates reliably in harsh conditions, including rain, snow, and wind speeds up to 60 km/h.





2. Primary Applications

l Emergency Response: Nighttime illumination at earthquake, flood, or traffic accident sites

l Construction & Infrastructure: Roadwork, bridge maintenance, mining, railway repair

l Public Safety: Temporary police checkpoints, border patrol, forensic scene investigation

l Large Events: Outdoor concerts, sports festivals, camping grounds

l Remote Operations: Airports, seaports, oil rigs, scientific field stations





3. Core Value Proposition

✅ Rapid Deployment: Fully operational in under 2 minutes by a single user

✅ 360° Soft, Uniform Light: Eliminates direct glare for safer, more comfortable visibility

✅ High Lumen Output: Delivers up to 39,000 lumens, effectively illuminating over 3,800 m²

✅ Rugged Environmental Performance: IP44-rated, wind-resistant (≤60 km/h), flame-retardant & tear-resistant fabric

✅ Branding-Friendly Design: Inflatable column surface supports custom logo printing—ideal for rentals and event promotions

✅ Global Voltage Compatibility: Works with standard AC power grids worldwide (120V / 220–240V)





4. Technical Specifications

Parameter Specification
Model Columus™ MH400
Light Source HID Metal Halide Lamp
Rated Power 400 W
Maximum Luminous Flux 39,000 lm
Luminous Efficacy ≤100 lm/W
Color Temperature 4200K (Neutral White)
Inflated Canopy Dimensions Diameter ≈ 40 cm × Height: 200 cm or 400 cm (2m or 4m mast options)
Approx. Weight ~12–18 kg (including blower, lamp unit, and carry bag; exact weight not specified in PDF)
Installation Method Built-in electric blower—tool-free setup; includes guy ropes for wind stability
Power Supply

AC 120V / 208V / 240V / 277V (60Hz) or 220–240V (50/60Hz)

Requires ≥1 kVA portable generator or mains power
Cold Start Time < 3 minutes
Hot Restrike Time 8–10 minutes
Lamp Life ≥10,000 hours
Ingress Protection IP44 (splash and dust resistant)
Wind Resistance Up to 60 km/h (with guy ropes installed)
Illuminated Area

>1 lux: ~3,848 m² (41,403 ft²)

>10 lux: ~707 m² (7,605 ft²)
Vertical Illuminance (at 4m height) 770 lux (~72 fc)






5. Application Case Studies

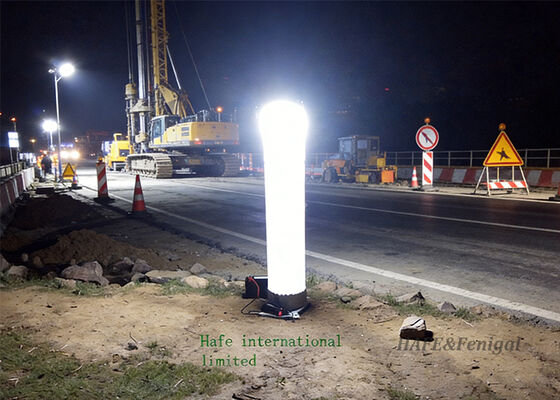

l Nighttime Highway Repair Project (China): Deployed without grid power using a portable generator, the MH400 provided uniform lighting across a 50-meter work zone, enhancing safety and reducing project duration by 30%.

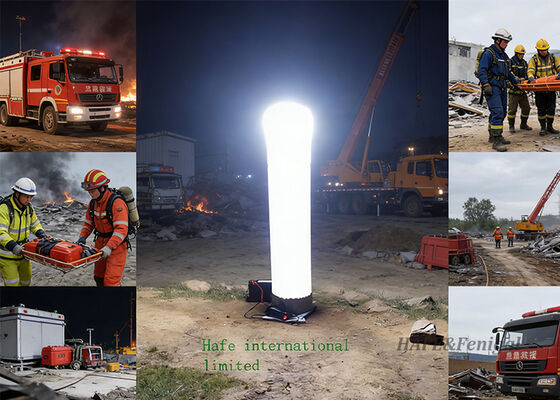

l International Flood Relief Operation (Southeast Asia): Rapidly set up at temporary medical and supply distribution centers during monsoon flooding, significantly improving nighttime operational efficiency and personnel security.

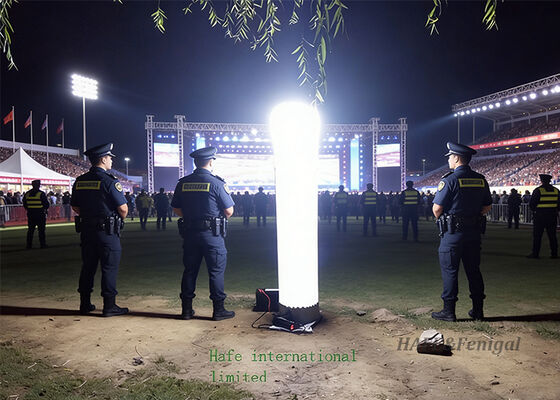

l Major Outdoor Music Festival (Europe): Replaced traditional tripod-mounted lights in backstage and logistics areas, delivering shadow-free, low-noise illumination that enhanced both staff and attendee experience.





6. Packaging & Transport

l Standard Packaging: Heavy-duty, waterproof carry bag (Trunk Pack) for easy vehicle or manual transport

l Packed Dimensions: Approx. 60 × 40 × 25 cm (folded)

l Included Accessories:

¢ Inflatable tower unit (integrated HID lamp + blower)

¢ Power cord (region-specific voltage)

¢ Ground stakes and wind-resistance guy rope kit

¢ User manual and safety instructions





Lighting Effect & Application:

1000W Simple And Rapid Inflatable Light Tower Pillars For A Large Area Illumination 0
